Custom data sync destinations

Build an Optimizely Connect Platform (OCP) app that creates custom destinations that users who install your app can use in data syncs.

After you import data into Optimizely Connect Platform (OCP), you can configure data syncs to sync that data out of OCP and into other applications (Optimizely or external). Every data sync has the following two base components:

  • Source – Where you want to sync the data from, such as the OCP database.
  • Destination – Where you want to sync the data to, such as an Optimizely application or custom destinations defined in your custom OCP app.

Building a custom OCP app lets you define custom destinations that users who install your app can select as a destination on the Sync Manager page in OCP.

You can add a custom destination to your OCP app in three steps:

  1. Declare destinations in the app manifest file (app.yml).
  2. Declare the schema for your destinations (one schema per destination).
  3. Implement the logic for the destinations.

Prerequisite

Register and scaffold your app.

Declare destinations in the app manifest file

You can define multiple destinations in a single app. You must declare every destination in the destinations section of the app manifest file (app.yml), and each destination must have its own schema and logic.

Required properties

  • schema – Must match a schema name defined in src/destinations/schemas.
  • entry_point – Name of the class implementing the sync logic.

Optional properties

  • description – Human-readable sync purpose.

For example:

destinations:
  bynder_asset_sync:
    entry_point: BynderAssetSync
    description: Sync Assets to Bynder
    schema: asset

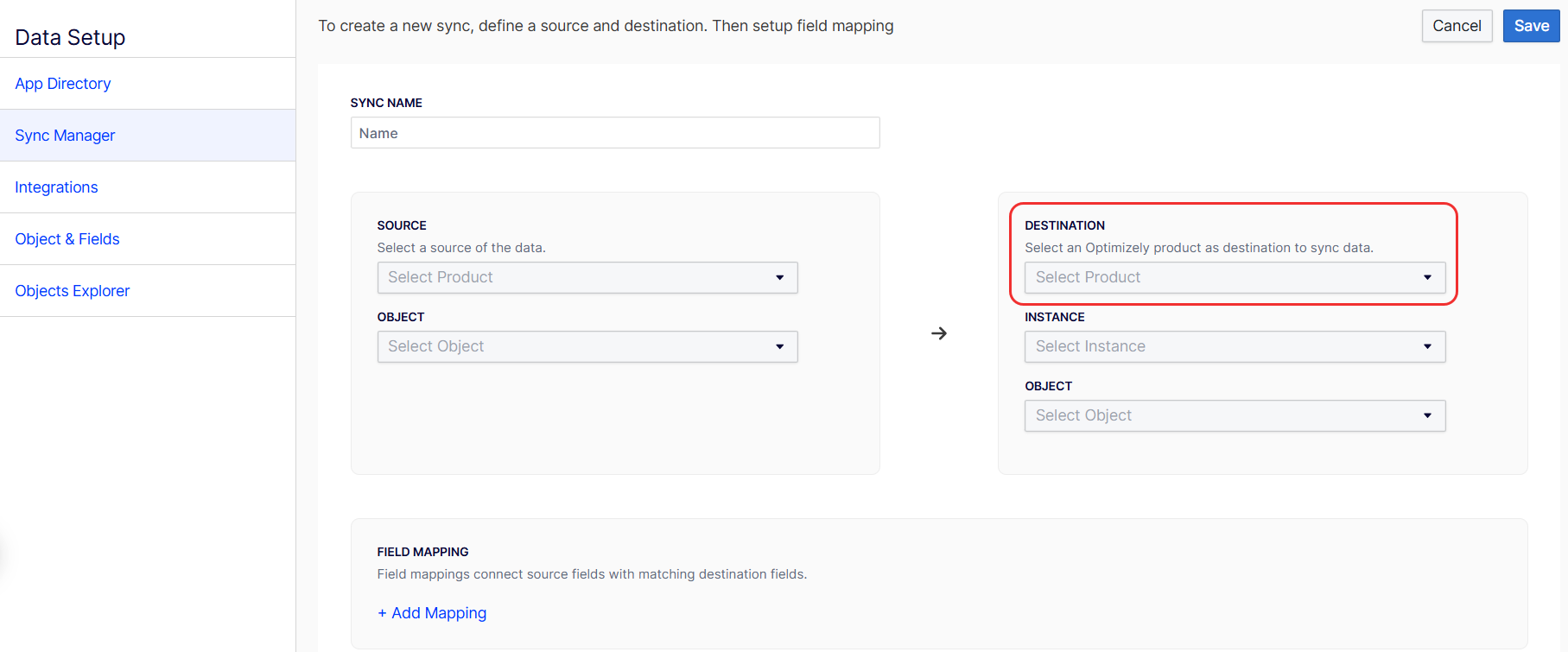

When a user installs your app, any destinations you defined in the app will display in the Destinations drop-down list on the Sync Manager page in OCP.

Declare the schema

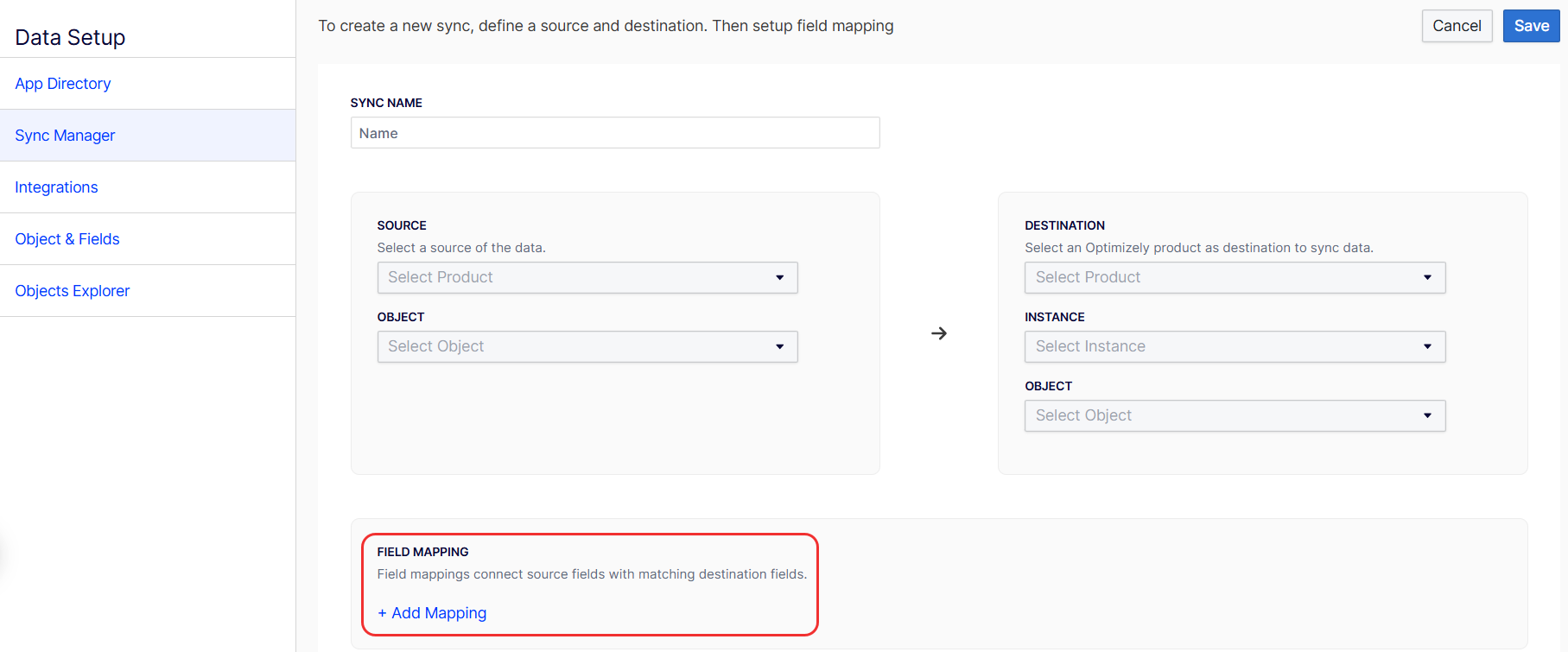

Schema is where you define which properties your destinations accept, which then display as options in the data sync field mappings. OCP calls your destination class method with properties defined in your schema.

You must create a matching YAML file in src/destinations/schemas for each schema field you defined in the app.yml file with the following:

  • name – Unique identifier matching the schema value in the manifest.
  • display_name – User-friendly name.
  • description – The field's purpose.
  • fields – Data structure and validation rules.
    • type – Type of value for the field. The following types are supported:
      • string
      • boolean
      • int
      • float
      • long
    • primary – Designates the unique identifier field for the object.

The following is an example for asset.yaml schema:

name: asset
display_name: Asset
fields:
  - name: bynder_id
    type: string
    display_name: Bynder Id
    description: Primary Id in Bynder
    primary: true
  - name: bynder_asset_name
    type: string
    display_name: Bynder Asset Name
    description: The name of the Asset

Implement the logic

Define your destination logic in a class that extends the Destination<T> abstract class. OCP calls your destination class methods. The key method is deliver, which accepts your list of items and should send the items to your destination service. Item property names match the fields you defined in your schema and are the values that display as options in the data sync field mappings.

Class structure

  • Extend Destination<T> in src/destinations directory.
  • Match the class name with entry_point in the app manifest file (for example, BynderAssetSync).

Methods to implement

  • ready()
    • Check credentials and configuration validity.
    • Return DestinationReadyResult with ready: boolean and error message, if applicable.
  • deliver(batch: DestinationBatch<T>)
    • Process DestinationBatch<T> containing the following:
      • items[] – List of items to process.
      • attempt – Count of delivery attempts.
      • syncid and name of the data sync.
    • Return DestinationDeliverResult with the following:
      • success – Indicates batch completion status.
      • retriable – Flag for retry eligibility on failure.
      • failureReason – (Optional) Internal error description.

For example:

import * as App from '@zaiusinc/app-sdk';
export interface BynderAsset {
  id: string;
  name: string;
}
export class BynderAssetSycn extends App.Destination<BynderAsset>{
  public async ready(): Promise<App.DestinationReadyResult> {
    return { ready: true };
  }
  public async deliver(batch: App.DestinationBatch<BynderAsset>): Promise<App.DestinationDeliverResult> {
    return { success: true, retryable: false };
  }
}

Handle errors and retries

Handle errors and retries in the deliver method.

  • Use retriable: true for transient errors (like network issues). A batch is retried a maximum of 3 times.
  • Set retriable: false for non-recoverable errors (like invalid credentials).

Directory Structure

  • Destination classessrc/destinations/{EntryPointClassName}.ts
  • Schemassrc/destinations/schema/*.yml

For example:

// successfully processed, no retry
return { success: true, retriable: false };

// unsuccesfully processed, no retry
return { success: false, retriable: false };

// unsuccessfully processed, retry
return { success: false, retriable: true };

Complete and publish your app

  1. Validate, prepare, publish, and install the app.
  2. Define the app settings form.
